Neurons extend cellular outgrowths in a coordinated set of developmental processes that establish and maintain the cellular connections essential to the nervous system’s communications network. These early outgrowth processes, known as neurites, develop dendrite and axon compartments responsible for incoming and outgoing neurotransmission. In vitro neurite outgrowth models serve as a crucial platform for understanding both normal and aberrant neuronal development, as well as for neurotoxicity testing, neuroregeneration, and neurodegeneration research.
The evaluation of neurite outgrowth using image-based analysis provides neurobiologists with essential tools to advance basic, translational, and clinical neuroscience research. The Agilent BioTek Gen5 neurite outgrowth module, in combination with Agilent BioTek automated live-cell imaging platforms, provides a complete integrated solution for neurite analysis applications that supports rapid and high-throughput neurobiology investigations at scale (Figure 1). A key feature of the Gen5 neurite outgrowth module is the flexibility of multichannel fluorescence-based analysis, as well as label-free brightfield and phase contrast imaging approaches, for both endpoint and kinetic live-cell applications.
This edition of TekTalk features technical resources demonstrating how automation of sample preparation steps, image collection, and image analysis can facilitate the sensitive, high-throughput evaluation of neurite outgrowth while minimizing user intervention and effort. Detailed descriptions of assay protocols and optimization steps are included for fluorescence-based and label-free approaches, for both primary cortical and iPSC-derived neuronal cultures.
The evaluation of neurite outgrowth using high-throughput image-based analysis provides an essential tool for neurobiologists to advance basic, translational, and clinical research in neuroscience. In this application note, we introduce the Agilent BioTek Gen5 neurite outgrowth module for flexible, automated, multichannel analysis of neurite outgrowth.

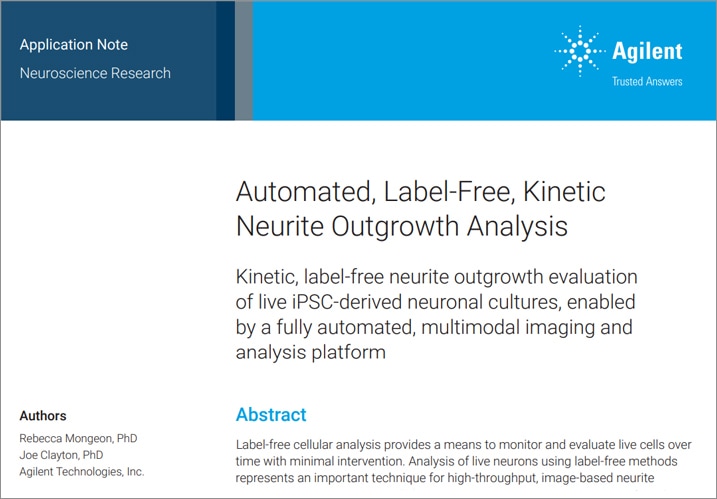

Label-free cellular analysis provides a means to monitor and evaluate live cells over time with minimal intervention. Analysis of live neurons using label-free methods represents an important technique for high-throughput, image-based neurite outgrowth assays. Agilent BioTek automated imaging systems feature integrated environmental controls and multiplate capacities to enable a diverse range of longterm live-cell applications.

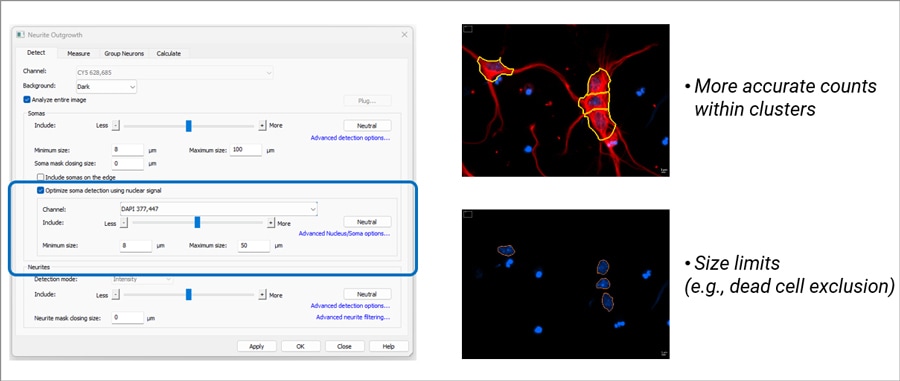

There are a couple of notable advantages to neurite outgrowth analysis approaches that include nuclear staining. Labeled nuclei can help resolve and analyze cell bodies that are clustered, resulting in more accurate cell counts and cell segmentation. Additionally, min and max limits in the module can be used to include or discard cells based on size, providing an effective method to exclude dead cells from the analysis due to their relatively condensed size compared to viable cells (Figure 3).
Another advantage of employing nuclear labels is the ability to identify and exclude nuclei lacking sufficient overlap with the antibody signal for neurite compartments. This can help ignore nuclei that are simply positioned near, or underneath, neurite processes emanating from a different cell.
Lastly, using nuclear labels in neurite analysis applications enables the user to finely control the distance the soma mask extends from the nucleus down into the neurite compartment. This feature relies on the “max nucleus/soma distance” setting in the module. This feature is particularly helpful for analyzing immunolabeled samples in which staining in the proximal neurite is typically intense, often equal to soma intensity. Under these conditions, there is often not a clear signal intensity boundary between the soma and neurites. However, the “max nucleus/soma distance” setting enables users to accurately define the soma boundary for different cell types and staining profiles (Figure 4).
The Agilent BioTek Gen5 neurite outgrowth module neurite outgrowth module accurately quantifies neuronal cell metrics and provides masking options including soma and neurite masks, along with skeletonized neurite masks. Calculated metrics include soma and neurite counts, total neurite length, neurite thickness, total neurite area, and total neurite branches, among others. The Gen5 neurite outgrowth module accurately detects neuronal outgrowth in kinetically monitored, unlabeled live cells. Learn more about neurite outgrowth analysis available with the module.
The Agilent BioTek Cytation cell imaging multimode reader range offers widefield and spinning disk confocal imaging. Air and water immersion objectives, brightfield, color brightfield, phase contrast, and fluorescence channels, plus environmental controls support a wide range of microscopy workflows including live-cell kinetics.
This video provides an overview of the neurite outgrowth module, available for use with Agilent BioTek Cytation imaging multimode readers and Lionheart automated microscopes. The neurite outgrowth analysis capabilities and calculated metrics provided are described in detail.
The Gen5 neurite outgrowth module allows researchers to gain insight to the dynamics of neuronal cells, a capability that is important in a variety of fields including neuropathology, developmental biology, neurotoxicity screening and regenerative medicine.
