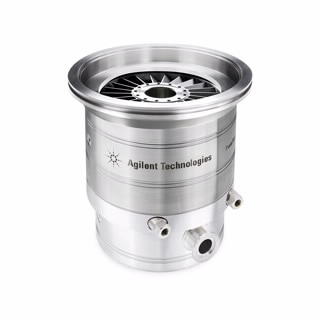

TwisTorr 804 FS Turbo Pump

Part Number:
X3511-64028

TwisTorr 804 FS turbo pump, DN 250 ISO-K inlet flange, KF25/KF40 foreline flanges. KF40 flange is installed in the pump, while KF25 is included in the package, not mounted

+ Create New list
Item successfully added to your list

Subscribe to this item in cart or checkout

More lab efficiency with your auto delivery schedule, modify and cancel it at any time. Simply select subscription delivery frequency in the cart or checkout, and submit your order. How does it work?

List Price:
$23,980.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Ambient Operating Temperature
  • +5 to +35 °C
Ambient Storage Temperature
  • -40 to +70 °C
Base Pressure
  • <1 x 10-10 mbar
Compression Ratio Ar
  • >1 x 1011
Compression Ratio H2
  • 3 x 106
Compression Ratio He
  • 2 x 108
Compression Ratio N2
  • >1 x 1011
Cooling Method
  • Air cooling
  • Water cooling
Flange Type
  • ISO 250 K
Foreline Flange Size
  • KF 40 NW
Height
  • 232.94 mm
Length
  • 207 mm
Maximum Gas Throughput - Ar, Water Cooling
  • 3.3 mbar l/s; 195 sccm
Maximum Gas Throughput - He, Water Cooling
  • 10.4 mbar/Ls; 615 SCCM
Maximum Gas Throughput - N2, Water Cooling
  • 6.2 mbar l/s; 367 sccm
Noise Level
  • 43 dB(A)
Pumping Speed - Ar
  • 690 L/s
Pumping Speed - H2
  • 485 L/s
Pumping Speed - He
  • 660 L/s
Pumping Speed - N2
  • 720 L/s
Standards and Certifications
  • 61326-1
    61010-1
    DIR 2006/42/CE
    DIR 2014/35/EU
    DIR 2014/30/EU
    DIR 2011/65/EU
Weight
  • 23.3 kg
Width
  • 207 mm
