X3509-64030
Please login to add product to your favorites.

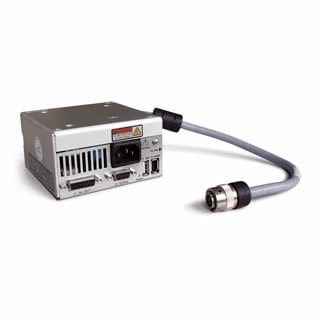

TwisTorr 74 FS Onboard Controller

Part Number:
X3509-64030

TwisTorr 74 FS onboard controller, 110-220 V

+ Create New list
Item successfully added to your list

Subscribe to this item in cart or checkout

More lab efficiency with your auto delivery schedule, modify and cancel it at any time. Simply select subscription delivery frequency in the cart or checkout, and submit your order. How does it work?

List Price:
$1,867.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Communications Interface
  • RS232
  • RS485
Compatible Mains Cables
  • IEC-320
Configuration
  • Onboard controller
Dimensions (WxHxL)
  • 107 mm x 59 mm x 107 mm
Display
  • No display
Height
  • 59 mm
Input Frequency
  • 50 to 60 Hz (±5%)
Length
  • 107 mm
Maximum Input Power
  • 130 VA
Maximum Pump Cable Length
  • 100 m
Modes of Operation
  • Remote
  • Serial
Pump Model Compatibility
  • TwisTorr 74 FS Turbo Pump
Standards and Certifications
  • EN 61010 - 1 (2001)
    EN 55011 (Class-A)
    EN 61000-3-2,
    EN 61000-3-3,
    EN 61000-6-2 (2005)
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-4-6
    EN 61000-4-8
    EN 61000-4-11
Storage Temp Conditions
  • Store from -20°C to +70°C
Weight
  • 0.5 kg
Width
  • 107 mm
