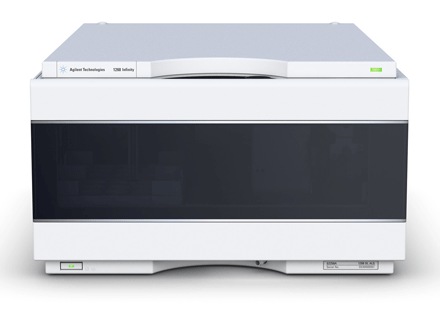

1260 Infinity Dual Loop Autosampler
1260 Infinity Dual Loop Autosampler
- LC Injection Systems
제품 정보
- Flexible injection volumes with the 'fixed-dual loop' concept.
- High throughput using the dual loop design.
- Capacity for large injection volumes - a multi-draw function enables operators to inject sample with volumes over 5 ml.
- Lowest carryover due to external and internal needle wash mechanisms.
- Variable injection modes accommodating both vials and well plates.
- Optional Peltier temperature control from 4 to 40 °C for protection of thermally labile samples.
- Software and Informatics
| Specifications for the Agilent 1260 Infinity Dual Loop Autosampler | |
| Injection modes | Partial loop filling Complete loop filling |
| Injection range | 0.1 - 5000 µL in 0.1 µL increments Recommended injection range 10 - 5000 µL |
| Loop size | Max. loop size 5 ml (selectable range: 5 µL - 50000 µL) |
| Area precision Complete loop fill |
Typically < 0.5% RSD (50 µL loop, overfill factor 3 or greater) |
| Area precision Partial loop fill |
Typically < 1.0% RSD (5000 µL loop, 1000µL injection volume, draw/eject speed 20 mL/min) |
| Sample viscosity range | 0.2 - 5 cp |
| Sample capacity | 2 well-plates (96 and 384) plus 10 additional 2-mL vials 108 x 2-mL vials in 2 x 54 vial plate plus 10 additional 2-mL vials 30 x 6-mL vials in 2 x 15 vial plate plus 10 additional 2-mL vials 54 Eppendorf tubes (0.5/1.5/2.0 mL) in 2 x 27 Eppendorf tube plate Vial septa and closing mats must be pre-slit. |
| Carryover | < 0.1% with rinse factor > 3 (see test method listing in manual) |
- 주요 참고문헌
-
Agilent 1260 Infinity Dual Loop Autosampler
Features, specifications, and ordering details for the Agilent 1260 Infinity Dual Loop Autosampler
- 데이터 시트
- English
- 06 Dec 2013
- 49.40 KB
- 데이터 시트
- 펌웨어
- 기술 개요
- 사용자 설명서
-
Agilent LC 시스템 사용에 대한 모범 사례 기술 노트
이 기술 노트에는 Agilent LC 시스템 사용에 대한 모범 사례가 설명되어 있습니다.
- 사용자 설명서
- Korean
- 22 Dec 2022
- 1.24 MB
Best Practices for Using an Agilent LC System Technical Note
This technical note describes best practices for using an Agilent LC system.
- 사용자 설명서
- English
- 23 Sep 2022
- 969.18 KB
1260 Infinity Dual-Loop Autosampler, Preparative Scale User Manual
This manual contains technical reference information about the Agilent 1260 Infinity Dual-Loop Autosamplers.
- 사용자 설명서
- English
- 16 Apr 2013
- 6.08 MB
