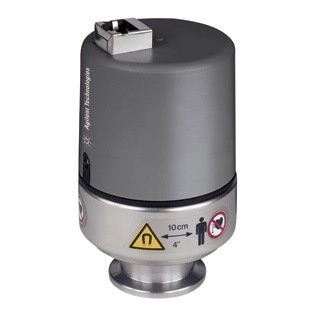

FRG-700/FRG-702 Full Range Pirani Inverted Magnetron Gauge
The FRG-702 is the all-metal version of the FRG-700, incorporating a metal-sealed feedthrough. It can be operated at higher temperatures (max. 150°C at flange) than the FRG-700 (max. 55°C at flange).
- Active Gauges
Product Details
- Provides two measuring technologies in a single, compact, economic package
- Measures process and base pressure from 3.8 x 10-9 Torr to atmosphere (5 x 10-9 mbar to atmosphere)
- A single, compact unit with one logarithmic analog output signal significantly reduces the complexity of installation, setup, and integration
- Ideal for high vacuum pressure monitoring, base pressure for evaporation and sputtering systems, and general vacuum measurement and control in the medium and high vacuum range
- No filament to burn out
- Excellent ignition properties
- Easy to clean and rebuild
- Low cost of ownership
- LED indicator for high voltage on provides quick visual indication of status
Accuracy |
|
Ambient Operating Temperature |
|
Ambient Storage Temperature |
|
Analog Output |
|
Electrical Connection |
|
Maximum Baking Temperature |
|
Measurement Range |
|
Response Time |
|
