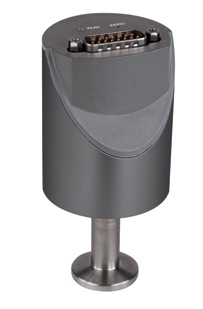

CDG-500 Capacitance Diaphragm Gauge
The Agilent CDG-500 series of temperature compensated capacitance diaphragm gauges provides the highest level of accuracy in the high-pressure region. Full-scale measurement ranges are available from 1000 to 1 Torr (1333 to 1.3 mbar).
The CDG-500 series uses a corrosion resistant ultra pure alumina ceramic diaphragm providing exceptional signal stability, fast recovery from atmosphere, short warmup times, and unparalleled robustness.
Used in a variety of applications such as thin film and vacuum processes, industrial vacuum processes, data storage, and semiconductor production processes.
The CDG-500 series uses a corrosion resistant ultra pure alumina ceramic diaphragm providing exceptional signal stability, fast recovery from atmosphere, short warmup times, and unparalleled robustness.
Used in a variety of applications such as thin film and vacuum processes, industrial vacuum processes, data storage, and semiconductor production processes.
Product Details
Features
- Full scale ranges from 1 to 1000 Torr (1.3 to 1333 mbar) with pushbutton zeroing and optional setpoint control providing ease of integration
- Excellent long-term signal stability and repeatability
- Fast recovery from atmospheric pressures and rapid stabilization after start-up reduces process cycle times
- Application robustness is achieved through a corrosion resistant ceramic sensor with sensor-shielding protection
- Highest level of accuracy (0.2% of reading)
