Turbo Pumping System TPS-compact with TwisTorr 305 FS
TPS-compact Turbo Pumping System

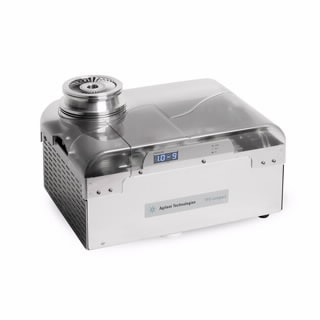

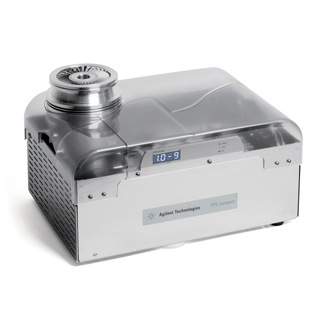

The TPS-compact is a portable, hydrocarbon-free turbo pumping station. Available with either the TwisTorr 74 FS or 305 FS turbomolecular pumps and backed by the Agilent 3 m3/h (60 L/min) dry scroll pump technology, it offers the fastest pumpdown on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.
The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified.
The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you high vacuum with the flip of a switch.
The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified.
The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you high vacuum with the flip of a switch.
Product Details
Features
- Dry, integrated 3 m3/h scroll pump (IDP-3) for fast roughing
- Plug and pump design for easy, one-switch operation
- Compact footprint for easy portability
- Onboard electronics and display to read full range gauge pressure from atm to base pressure
- Ready for Vacuum Link app to give full pump control through your mobile phone
- Multiple turbo pump sizes to meet your application needs
- High turbo pump compression ratio enabling low base pressure, down to 1 x 10-9 mbar
- Analog I/O provides accurate control of the system and pressure driven setpoint
- Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
- Wide voltage range (90–240 V) for worldwide operation
- Inlet screen included in the package
- CE/CSA certification
- Shipped without a power cord, to be ordered separately
