VacIon Plus 20 Pump
VacIon Plus 20 Pump

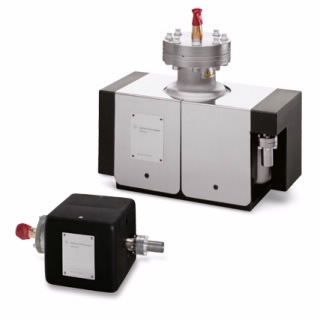

The Agilent VacIon Plus 20 pump is a medium-sized 20 L/s ion pump. It is ideal for a wide range of ultrahigh and extreme high vacuum applications for academic and high-energy physics (HEP) research, and medical equipment use for imaging and radiation therapy.
This pump is available with a diode element for general use, and StarCell and Noble Diode elements when a gas mixture is being pumped. The patented StarCell element handles high amounts of noble gases and hydrogen and provides the highest speed and capacity for methane, argon, and helium. Customer-selected options like element type, integral heaters, and high-voltage feedthroughs are available for easy system integration and consistent particle-free UHV pumping performance.
This pump is available with a diode element for general use, and StarCell and Noble Diode elements when a gas mixture is being pumped. The patented StarCell element handles high amounts of noble gases and hydrogen and provides the highest speed and capacity for methane, argon, and helium. Customer-selected options like element type, integral heaters, and high-voltage feedthroughs are available for easy system integration and consistent particle-free UHV pumping performance.
Product Details
Features
- Select from StarCell, diode, and noble diode elements to achieve the best pumping speed for different gases
- Available with ConFlat 2.75² rotatable flange and a choice of feedthroughs (Fischer, King, DESY, Varian, SHV 10kV (Safeconn)) in different orientations
- No moving parts ensures vibration-free operation for sensitive applications
- Low leakage current provides stable vacuum pressure reading
- Low magnetic field minimize system interference
- Vacuum processed at >400 °C and pinched off under vacuum to ensure cleanliness and vacuum integrity prior to installation
- Customizable with different high voltage feedthroughs, body geometries, additional ports, and pumping cell arrangements and available with optically shielded baffles, external heaters, and magnetic shielding to meet your needs
- SEM versions available with ultralow leakage current and high stability for minimal electrical interference
- Special testing procedures for your specific requirements can be added
