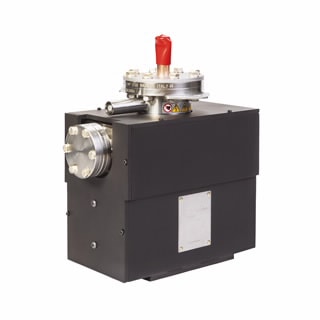

Ion CombiNEG 40-400 Pump
Ion CombiNEG 40-400 Pump
This is the only pump that handles high amounts of noble gases, with the highest pumping speed and capacity for methane, argon, and helium. It is meant for demanding applications where extra pumping speed is required at ultrahigh and extreme high vacuum.
- Non-Evaporable Getter (NEG) Combination Ion Pumps
Product Details
- StarCell ion pump elements offer excellent pumping speeds for noble gases, and the NEG cartridge has a high pumping speed for reactive gases resulting in a high combined pumping speed for faster UHV/XHV pumpdown times
- Sintered NEG cartridge, in a very compact design, provides a superior solution to lower-quality powder-pressed NEG cartridges, eliminating the risk of releasing powder into your system
- Available with ConFlat 4.5² non-rotatable flange and ConFlat 2.75² flange for the NEG cartridge
- Choice of feedthroughs in different orientations for maximum flexibility
- No moving parts ensures vibration-free operation for sensitive applications
- Low leakage current provides stable vacuum pressure reading
- Low magnetic field minimizes system interference
- Vacuum processed at >400 °C and pinched off under vacuum to ensure cleanliness and vacuum integrity prior to installation
Element Type |
|
Feedthrough Style |
|
Heater Power |
|
Heater Voltage |
|
Inlet Flange |
|
Maximum Baking Temperature |
|
Maximum Starting Pressure |
|
Operating Life |
|
Ultimate Pressure |
|
Weight (pump only) |
|
