VacIon Plus 300 Pump
VacIon Plus 300 Pump

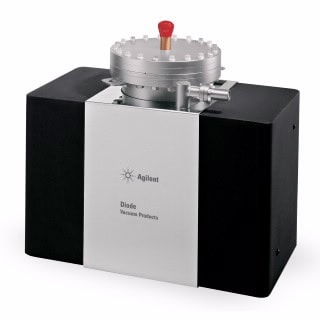

The VacIon Plus 300 L/s pump provides high pumping speed in a moderate footprint and weight and is used in laboratories where ultrahigh and extreme high vacuum conditions are crucial.
This pump is available with three types of elements. Diode elements are for general-purpose UHV and XHV applications where the highest hydrogen pumping speed is critical and the system is seldom vented or prone to atmospheric leaks. StarCell elements handle a high amount of noble gases (better than noble diode) and hydrogen (comparable to the diode). StarCell also provides the highest speed and capacity for methane, argon, and helium. Noble diode elements are for general-purpose UHV and XHV where pumping of residual argon and other noble gases is required.
This pump is available with three types of elements. Diode elements are for general-purpose UHV and XHV applications where the highest hydrogen pumping speed is critical and the system is seldom vented or prone to atmospheric leaks. StarCell elements handle a high amount of noble gases (better than noble diode) and hydrogen (comparable to the diode). StarCell also provides the highest speed and capacity for methane, argon, and helium. Noble diode elements are for general-purpose UHV and XHV where pumping of residual argon and other noble gases is required.
Product Details
Features

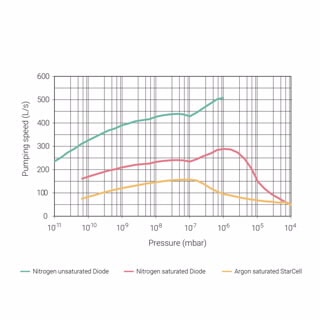

- Available with StarCell, diode, and noble diode elements to provide the best pumping speed for different gases
- Available with ConFlat 8² non-rotatable flange, additional 8² ConFlat port, double-ended and side ports available with a choice of feedthroughs (Fischer, King, DESY, Varian, Safeconn) in different orientations
- No moving parts ensures vibration-free operation for sensitive applications
- Low leakage current provides stable vacuum pressure reading
- Low magnetic field minimizes system interference
- Vacuum processed at >400 °C and pinched off under vacuum to ensure cleanliness and vacuum integrity prior to installation
- Customizable with different high-voltage feedthroughs, body geometries, additional ports, and pumping cell arrangements and available with optically shielded baffles, external heaters, and magnetic shielding to meet your needs
