Diffusion Pump VHS-10
VHS-10 Diffusion Pump

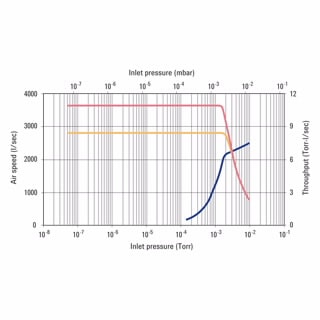

The VHS-10 Diffusion Pump has a pumping speed of up to 3650 L/s and can be ordered with ASA or ISO flanges, standard or extended cold caps, and a variety of voltages. The patented Bulge Contour increases gas capture and maintains lower pressure. All VHS series pumps have sight glass/fill and drain assemblies for continuous monitoring and easy maintenance of pump fluid. Finned boilers increase surface area, prolonging pumping fluid life.
This vapor jet pump is a perfect fit for industrial applications such as vacuum furnace, heat treatment, metallizing, and coating processes for optical lenses, electronics and protective film layers.
This vapor jet pump is a perfect fit for industrial applications such as vacuum furnace, heat treatment, metallizing, and coating processes for optical lenses, electronics and protective film layers.
Product Details
Features
- Patented Bulge Contour increases gas capture
- Fluid level sight glass provides a quick indication of pump fluid status at all times
- Fill and drain assembly for easy maintenance of pump fluid
- High throughput
- Fractionating jet purifies fluid for cleaner operation
- High tolerable forepressure
- Full thermal protection safeguards against all thermal overloads
- Stainless steel pump body
- Finned boiler increases surface area, prolonging pumping fluid life
- Quick cool coil is standard
