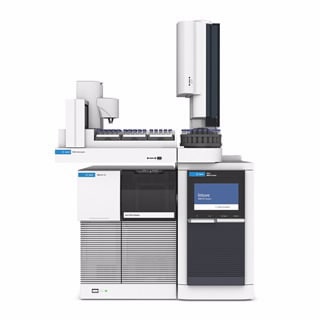

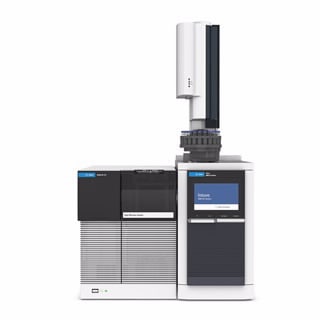

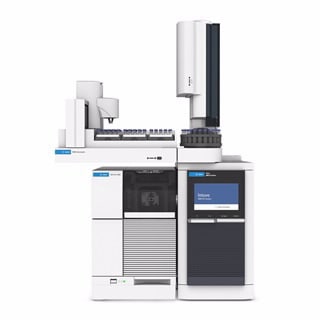

Intuvo 9000 Gas Chromatograph (GC) System
Intuvo 9000 GC System
The Intuvo 9000 Gas Chromatography (GC) System is designed for fast gas chromatography and high throughput while simplifying your laboratory workflow. Eliminate column maintenance and change columns in less than a minute with Intuvo's click-and-run connections. Ballistic direct column heating offers faster GC cycle times and improves reproducibility.
Intuvo's built-in intelligence reduces operational and maintenance costs through self-guided diagnostic troubleshooting and early maintenance feedback. Smart Keys identify the exact instrument configuration and column parameters to reduce user error.
Intuvo's built-in intelligence reduces operational and maintenance costs through self-guided diagnostic troubleshooting and early maintenance feedback. Smart Keys identify the exact instrument configuration and column parameters to reduce user error.
Product Details
Features

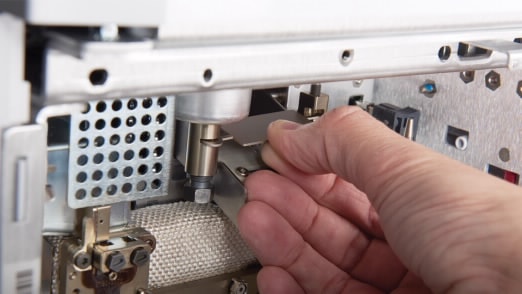

- Guard Chips prevent column contamination, protecting downstream components and increasing column life
- Intuvo no-trim GC columns require no maintenance

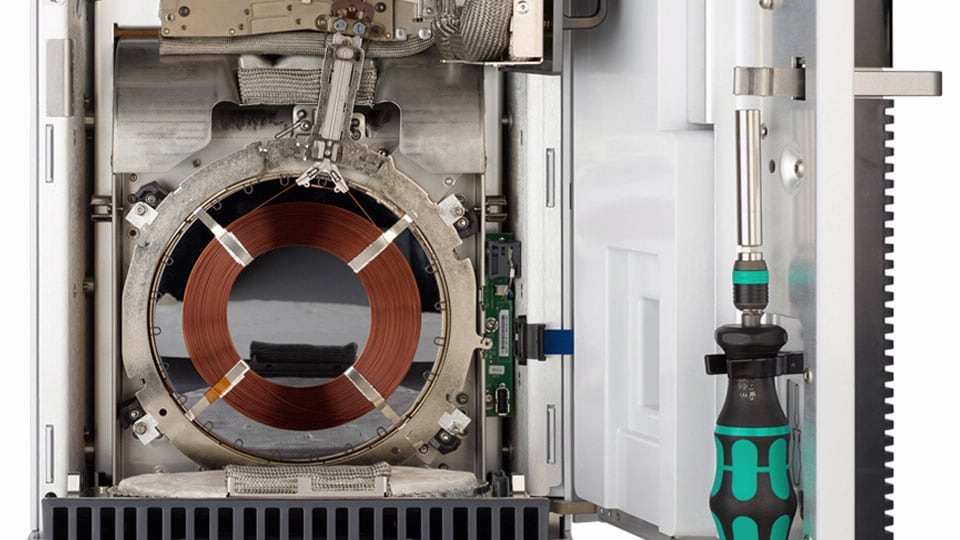

- Direct heating oven delivers linear and repeatable temperature ramps from 30 °C to 450 °C at 250 °C/min
- Ferrule-free, click-and-run connections allow any operator, regardless of experience, to make completely leak-free connections
- Innovative flow path provides the ability to configure the GC flow path as needed, making backflush installation simple
- Smart ID Keys attached to critical flow path components provide information such as configuration and column age with default parameters for configuration
- Intelligent troubleshooting routines diagnose GC system problems by measuring over 100 parameters in real time and provide a step-by-step solution guide in an easy-to-read format
- Large touchscreen control with the ability to deliver instrument information wirelessly through secure networks
- Uses less than half the power of a conventional GC and can be plugged into any outlet without changing the wiring of the lab
- Ideal platform for high-throughput or high-speed gas chromatography with fast heating and cool down
- Smaller footprint than most lab GC systems with a similar range of functionality and performance to optimize valuable bench space
- Gas Saver, smaller column dimensions, and faster cycle times can result in less helium consumption compared to conventional GC systems
- Compatible with Agilent 5977, 7000, and 7010 mass spectrometer systems
- Independently audited for environmental impact throughout the product lifecycle, received My Green Lab’s ACT (Accountability, Consistency, Transparency) label
How It Works
Applications
Featured References
- Publications
-
- Fast Residual Solvents and Terpenes Analyses in Cannabis and Hemp Products, J. Hollis and A. Macherone, Cannabis Sci. & Tech. (2023) Learn More
- Further improvements in pesticide residue analysis in food by applying gas chromatography triple quadrupole mass spectrometry (GC-QqQ-MS/MS) technologies, E. Hakme., et al., Anal Bioanal Chem, 410, 5491–5506 (2018) Learn More
- High-throughput gas chromatography for volatile compounds analysis by fast temperature programming and adsorption chromatography, R. Gras et al., J Sep Sci., 40, 1979-1984 (2017) Learn More
- Development of a fast gas chromatography–tandem mass spectrometry method for volatile aromatic compound analysis in oenological products, M. Paolini et al., J Mass Spectrom., 53, 801– 810 (2018) Learn More
- Hydrogen-rich syngas production from palm kernel shells (PKS) biomass on a downdraft allothermal gasifier using steam as a gasifying agent, J. Barco-Burgos et al., Energy Conversion and Management, 245 (2021) Learn More
- Development and validation of a fast gas chromatography mass spectrometry method for the quantification of selected non-intentionally added substances and polystyrene/polyurethane oligomers in liquid food simulants, E. D. Tsochatzis et al., Analytica Chimica Acta, 1130, 49-59 (2020) Learn More
- Presence of anthraquinone in coffee and tea samples. An improved methodology based on mass spectrometry and a pilot monitoring programme, F. J. Díaz-Galiano et al., Anal. Methods, 13, 99-109 (2021) Learn More
- Development of a separation framework for effects-based targeted and non-targeted toxicological screening of water and wastewater, S. S. Pochiraju et al., Water Research, 170 (2020) Learn More
- Comprehensive investigation of lactones and furanones in icewines and dry wines using gas chromatography-triple quadrupole mass spectrometry, Xu Qian et al., Food Research International, 137 (2020) Learn More
- Chapter One - Comprehensive Analytical Testing of Cannabis and Hemp, A. Macherone, Comprehensive Analytical Chemistry, edited by Imma Ferrer and E. Michael Thurman, vol. 90, Elsevier, pp. 3–29 (2020) Learn More
- Ambient Condition Alcohol Reforming to Hydrogen with Electricity Output, Z. Manzoor Bhat et.al., ACS Sustainable Chem. Eng. 9(8), 3104–3111 (2021) Learn More
