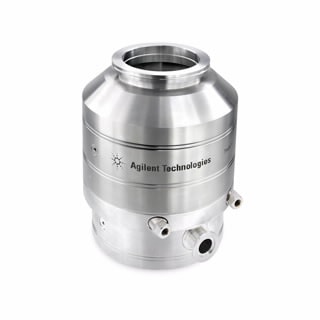

TwisTorr 404 FS Turbo Pump
TwisTorr 404 FS Turbo Pump
The 404 FS is an excellent choice for UHV systems, nuclear research, ion implanters, surface analysis, electron microscopy, and cryogenics applications. The pump’s smart controller automatically optimizes pump performance according to system needs.
- Turbo Pumps
Product Details
- High compression ratios for light gases and capability to manage high gas flow, enabling operation in low base pressure and high-throughput applications with 400L/s pumping speed within a DN 100 flange
- Hydrocarbon free for clean vacuum system
- Remote controller allows operation from 100 m away.
- Low vibration and noise levels—43 dB(A)—for a comfortable working environment and operation in sensitive experiments
- Compact size and installation in any position allow easy integration
- Maintenance-free bearings for zero operating cost
- Ready for wireless control via Vacuum Link app for pump operation on the go
- Radiation and magnetic field-proof design with no embedded electronics allows operation in demanding magnetic field and radiation environments
- Low electromagnetic emission guarantees no interferences with application process
- Pump control software provides maximum flexibility, speed, and simplicity—always the best throughput and compression performance according to pump operative conditions
| Ambient Operating Temperature |
|
| Ambient Storage Temperature |
|
| Base Pressure |
|
| Compression Ratio H2 |
|
| Compression Ratio He |
|
| Compression Ratio N2 |
|
| Cooling Method |
|
| Flange Type |
|
| Foreline Flange Size |
|
| Foreline Tolerance - N2 |
|
| Maximum Gas Throughput - Ar, Water Cooling |
|
| Maximum Gas Throughput - N2, Water Cooling |
|
| Noise Level |
|
| Nominal Rotation Speed |
|
| Operating Position |
|

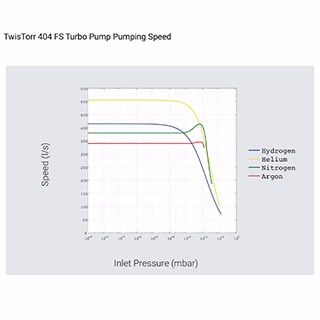

| Pumping Speed - Ar |
|
| Pumping Speed - H2 |
|
| Pumping Speed - He |
|
| Pumping Speed - N2 |
|
| Recommended Forepump Capacity |
|
| Standards and Certifications |
|
| Start Up Time |
|
| Weight |
|
