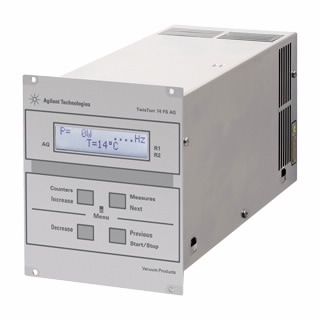

Turbo Pump Rack Controller for TwisTorr 74 FS

Features

Ready for Vacuum Link app for full pump control with your mobile phone
Active gauge reading facilitates system pressure monitoring
Pump cables extensible up to 100 m long for mounting remote controller
RS232/RS485/Profibus communication protocols for easy integration
Analog I/O for accurate control of the pump
A-plus remote-control software for pump control and logging of system parameters (e.g., pressure)
Rack-mounted design for easy integration
Vent valve and cooling fan driving to get full vacuum system control
Universal voltage (100–240 V) for worldwide operation
Shipped without a power cord, to be ordered separately

Specifications


Configuration	Remote controller, rack-mounted
Maximum Pump Cable Length	100 m
Operating Environment Relative Humidity	90 % maximum non condensing humidity
Operating Environment Temperature	5° C to 45° C
Pump Model Compatibility	TwisTorr 74 FS Turbo Pump
Standards and Certifications	EN 61010 -1 EN 55011 (Class-A) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-4-2,3,4,5,6,11, 8
Weight	1.7 kg
