Turbo Pumping System TPS-mini with TwisTorr 74 FS
TPS-mini Turbo Pumping System
The TPS-mini is a ready-to-use dry-pumping system and ideal vacuum solution for small volume chambers and gauge calibration systems. The simple to use, on/off switch gives you high vacuum with the flip of a switch.
- Integrated Turbo Pumping Systems
Request a Quote
Product Details
- Plug-and-pump design for easy, one-switch operation
- The smallest dimensions and lightest weight for easy portability and integration in any position
- Onboard electronics and display to read full range gauge pressure from atm to base pressure

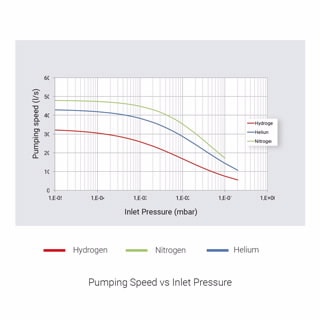

- Embedded 70 L/s turbopump for operation down to 1 x 10-8 mbar
- Ready for Vacuum Link app to give full control of the turbo pump and pressure through your mobile phone
- Analog I/O provides accurate control of the system and pressure-driven setpoint
- Serial RS232 communication protocol with A-plus software enables turbo pump operation, control, and recording of system parameters (i.e., pressure)
- Wide voltage range (90–240 V) for worldwide operation
- CE/CSA certification
- Shipped without a power cord, to be ordered separately
